| Part Number | Forward/reverse channels | Data rate (Max) (Mbps) | VCCx (V) | Prop. Delay (ns) | Current/channel Typ (mA) | Default output | CMTI (kV/μs) Min | Operating Temp（℃) | VISO(Vrms) | Package Group | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

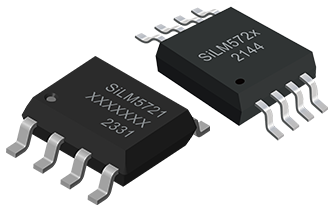

| SiLM572x系列（高速双通（tōng）道数字隔离器） | 下载 | |||||||||||
| SiLM5720CA-DG | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5720FCA-DG | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5721CA-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5721FCA-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5722CA-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5722FCA-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5720CM-DG | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5720FCM-DG | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5721CM-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5721FCM-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5722CM-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5722FCM-DG | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5720CA-AQ | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5720FCA-AQ | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5721CA-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5721FCA-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5722CA-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5722FCA-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 3000 | SOP8 | Reel/2500 | |
| SiLM5720CM-AQ | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5720FCM-AQ | 2 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5721CM-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5721FCM-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5722CM-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
| SiLM5722FCM-AQ | 1 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 150 | -40 ~ 125 | 5000 | SOP8W | Reel/1000 | |
